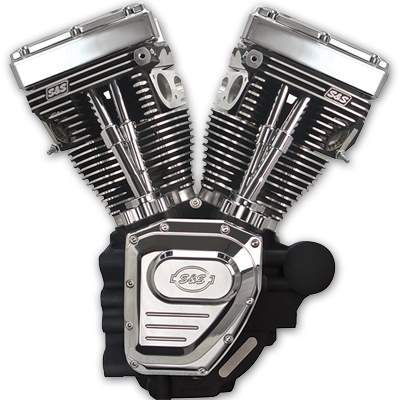

If Bigger is Better, the S&S Cycle 143 is the Best…
The BIGGEST, BADDEST, BOLT-IN for a Stock Frame.
All joking about size aside, it does matter. The S&S 143 Long Block engine for 2008-later Harley Davison touring models is the largest S&S engine that will fit in a stock Harley Davidson chassis. It’s big, 143 cubic inches. Nuff said.
At double the HP of a stock motor the power of the 143 requires technical expertise for the installation and tuning along with an experienced rider. This is an ultra performance/race engine. Longevity, engine noise, vibration and throttle sensitivity have all been compromised to reach this level of performance while fitting in a stock chassis and as such is not suitable for every situation. It is the purchaser’s responsibility to consider the suitability for their application. Engine noise and damage from abuse is not covered under warranty.
Fitment:
- 2008-later Harley Davison touring models
Features and Benefits:
- Fits in stock chassis-no cutting or frame modifications
- S&S B3 cylinder heads CNC machined with 2 bolt exhaust flanges
- S&X Super Stock T2 Crankcases with reed breather valve
- 3 Piece Flywheels
- S&S high flow oil pump and cam cover
- S&S Premium High Performance Tappets
- 6 months parts warranty
Options:
 |
 |
Wrinkle Black Powder Coat Finish |
Stone Gray Powder Coat Finish |
S & S Twin Cam 143 Harley Replacement Engine Specifications |
|||||||||
Chassis Style |
Displacement |
Bore |
Stroke |
Cam |
Piston Type |
Compression Ratio |
Warranty |
Finish |
Part Number |
| 2008-Up Touring Models | 143" | 4.425" | 4 5/8" | 635 | S&S Forged Flat Top | 10.5:1 | 6 Months | WBlack | 310-0548 |
| Stone Gray | 310-0549 | ||||||||
Requires Oil Line Installation Kit |
|||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||
- Details
- Written by: support911
- Category: S&S Harley Replacement Engines
- Hits: 3446
S&S Cycle has a Harley replacement engine for bagger owners wanting more performance. This is great news for those of you wanting to go faster too. S&S Cycle is offering the T- Series Harley replacement engines for 2007-Up Twin Cam bikes. The S&S Cycle T111, T124 and T124LC Long Block Engines will bolt directly into your stock touring chassis with no modifications.
These Harley replacement engines are sold without the fuel system, so you can use what you have and save some money, or use any performance system you like. S&S Cycle recommends an S&S Cycle throttle body and the TTS VFI tuner!
The T111 Harley replacement engine is the ultimate sport touring engine, while the T124 Harley replacement engine is just what you need for a hot rod bagger. The T111 Harley replacement engine has a 4.125 bore and a 4.125 stroke for a true square engine making it the smoothest Harley replacement engine available. The T124LC Harley replacement engine is a slightly lower compression version of the T124 with S&S Cycle 640 Easy Start gear drive cams that is ideally suited for heavier bikes and trikes, plus it’s more tolerant of variations in fuel quality.
These Haley replacement engines have the same performance as S&S Cycle T-Series Harley replacement engines for 1999-’06 Harley-Davidson® big twins, but are built with the new S&S Cycle Super Stock T2 Crankcases for 2007-later Harley bikes (except Twin-Cooled™ models). These Harley replacement engines require an S&S Cycle oil line kit for installation. Not available for Dyna® models or Late model Softail®
Call DC V-Twin today to learn more about making your bike the best it can be with one of the new S&S Cycle Harley replacement engines. Whether you go with the T111 for cruising cross country and around town or you choose the T124 for ripping up the asphalt with maximum power S&S Cycle and DC V-Twin has you covered.
Fitment:
- 2007-Up Touring Models (except Twin-Cooled™ models)
Features and Benefits:
- No fuel system or ignition systems included - Use what you already have
- Special Head machining – Fits stock length intake manifolds (S&S manifold size 405)
- Stock style breathing system – stock breather spacing and function is compatible with stock and most performance air cleaners
- Super Stock™ T2 Crankcase
- 3-Piece Flywheels
- S&S High flow oil pump and cam cover
- S&S Easy Start gear drive cams
- tock Twin Cam 96™ bolt pattern
Options:
- T111 – 111 cubic inches, perfect sport-touring engine
- T124 – 124 cubic inches, hot-rod performance, 640 Easy Start gear drive cams
- T124LC – 124cubic inches with slightly lower compression, 585 Easy Start gear drive cams
|
|
Wrinkle Black Powder Coat Finish |
Stone Gray Powder Coat Finish |
S & S T-Series Harley Replacement Engine Specifications |
||||||
Engine Name |
Displacement |
Bore |
Stroke |
Cams |
Piston Type |
Compression Ratio |
| T111 | 111" | 4 1/8" | 4 1/8" | 585 | S&S Forged | 9.8:1 |
| T124 | 124" | 4 1/8" | 4 5/8" | 640 | S&S Forged Flat Top | 10.8:1 |
| T124LC | 124" | 4 1/8" | 4 5/8" | 585 | S&S Forged Dished | 10.2:1 |
S & S T124 Harley Replacement Engines Without Fuel & Ignition Systems |
|||||
Chassis Style |
Cam |
Compression Ratio |
Warranty Period |
Finish |
Part Number |
| 2007-Up Touring Models | 640 | 10.8:1 | 1 year | WBlack | 310-0400 |
| 585 | 10.2:1 | WBlack | 310-0401 | ||
S & S T111 Harley Replacement Engines Without Fuel & Ignition Systems |
|||||
Chassis Style |
Cam |
Compression Ratio |
Warranty Period |
Finish |
Part Number |
| 2007-Up Touring Models | 585 | 9.8:1 | 1 year | WBlack | 310-0402 |
S & S T124 Harley Replacement Engines Without Fuel & Ignition Systems |
|||||||||
Chassis Style |
Displacement |
Bore |
Sroke |
Cam |
Piston Type |
Compression Ratio |
Warranty Period |
Finish |
Part Number |
| 2007-Up Touring Models | 124" | 4 1/8" | 4 5/8" | 640 | S&S Forged Flat Top | 10.8:1 | 1 year | Stone Gray | 310-0511 |
| 585 | S&S Forged Dished, 11cc | 10.2:1 | 310-0512 | ||||||
- Details
- Written by: support911
- Category: S&S Harley Replacement Engines
- Hits: 13713
S&S Cycle knows that a lot of riders have already invested in performance upgrades for their stock engine by the time they are ready to move up to a complete big inch Harley replacement engine. Wouldn’t it be nice to be able to save some money by using some of those items on your new S&S Harley Replacement engine? Well now you can!
S&S Cycle is offering T-Series Harley Replacement engines for 1999-’06 big twins without fuel or ignition systems. The S&S Cycle T111, T124 and T124LC Long Block Harley replacement engines will bolt directly into your stock touring chassis with no modifications and if you have already added a performance carburetor or an EFI throttle body and tuner to your stock engine, you can use it on your new engine. A carb or throttle body that fits a stock engine will fit the new S&S Harley Replacement engine because the heads are specially machined to compensate for the increased cylinder length so a stock length manifold will fit. If you’ve installed a performance ignition or EFI tuner, you can possibly use it too.
The T111 Harley replacement engine is the ultimate sport touring engine, while the T124 Harley replacement engine is just what you need for a hot rod bagger. The T111 Harley replacement engine has a 4.125 bore and a 4.125 stroke for a true square engine making it the smoothest Harley replacement engine available. S&S Cycle is also introducing the T124LC Harley replacement engine is a slightly lower compression version of the T124 with S&S Cycle 640 Easy Start gear drive cams that is ideally suited for heavier bikes and trikes, plus it’s more tolerant of variations in fuel quality.
S&S Cycle offers the T111 and T124 Harley replacement engine to replace the stock carbureted engines from 1999-’06 or fuel injected 2002-2006 engines. S&S Cycle T111 and T124 Harley replacement engines are available in silver powder coat, wrinkle black powder coat, and polished finishes. Match the original engine in your bike or go for a custom look.
S&S Cycle T111 and T124 engines are designed to replace the existing Harley Twin Cam 88 engine in a stock chassis, making it easy to get the performance you want from your late model motorcycle. Take the stock engine out and put an S&S Harley replacement engine in. It’s that simple.
Due to the changes in S&S Cycle crankcase design, installation of an S&S Cycle T111 and T124 Harley replacement engine in 1999-2005 Dyna models require oil line installation kit #31-0424. For installation in 2000-2006 FLT models oil line installation kit #31-0425 is required.
Call DC V-Twin today to learn more about making your bike the best it can be with one of the new S&S Cycle Harley replacement engines. Whether you go with the T111 for cruising cross country and around town or you choose the T124 for ripping up the asphalt with maximum power S&S Cycle and DC V-Twin has you covered. Phone DC V-TWIN at 478-988-4313
S & S is also introducing the T124LC engine, which has slightly lower compression and a shorter duration cam set. Lower compression makes the T124LC more resistant to knock and detonation, and promotes better engine life and dependability.
Fitment:
- 2007-Up Touring Models (except Twin-Cooled™ models)
Features and Benefits:
- No fuel system or ignition systems included - Use what you already have
- Special Head machining – Fits stock length intake manifolds (S&S manifold size 410)
- Stock style breathing system – stock breather spacing and function is compatible with stock and most performance air cleaners
- Same quality components and performance as our complete T-Series engines
- New S&S cylinders that look more like stock
- Super Stock™ heads and crankcases
- 3-Piece Flywheels
- S&S High flow oil pump and cam cover
- S&S Easy Start gear drive cams
Options:
- T111 – 111 cubic inches, perfect sport-touring engine
- T124 – 124 cubic inches, hot-rod performance, 640 Easy Start gear drive cams
- T124LC – 124 cubic inches with slightly lower compression, 585 Easy Start gear drive cams
- Wrinkle black (WBlack) or silver powder coat finish matches stock components
|
 |
Wrinkle Black Powder Coat Finish |
Silver Powder Coat Finish |
S & S T-Series Harley Replacement Engine Specifications |
||||||
Engine Name |
Displacement |
Bore |
Stroke |
Cams |
Piston Type |
Compression Ratio |
| T111 | 111" | 4 1/8" | 4 1/8" | 585GP | S&S Forged | 9.8:1 |
| T124 | 124" | 4 1/8" | 4 5/8" | 640GP | S&S Forged Flat Top | 10.8:1 |
| T124LC | 124" | 4 1/8" | 4 5/8" | 585GP | S&S Forged Dished | 10.2:1 |
S & S T124 Harley Replacement Engines Without Fuel & Ignition Systems |
|||||
Chassis Style |
Cam |
Compression Ratio |
Warranty Period |
Finish |
Part Number |
| 1999-2006 BT, Except '06 Dyna® | 640 | 10.8:1 | 1 year | Silver | 310-0281 |
| WBlack | 310-0282 | ||||
| 585 | 10.2:1 | Silver | 310-0327 | ||
| WBlack | 310-0326 | ||||
S & S T111 Harley Replacement Engines Without Fuel & Ignition Systems |
|||||
Chassis Style |
Cam |
Compression Ratio |
Warranty Period |
Finish |
Part Number |
| 1999-2006 BT, Except '06 Dyna® | 585 | 9.8:1 | 1 year | Silver | 310-0279 |
| WBlack | 310-0280 | ||||
Requires Oil Line Kit |
|
Fitment |
Part Number |
| 1999-2005 FLT Models | 31-0425 |
| 1995-2006 Dyna® Models |
31-0424 |
- Details
- Written by: support911
- Category: S&S Harley Replacement Engines
- Hits: 3785
DC V-Twin is now offering S&S Cycle B2 heads on several S&S Harley replacement engines including the popular 126. No one person has sold as many custom S&S Cycle B2 head engines than DC V-TWIN’s own Derek Churchwell. Churchwell has built some of the most powerful street and strip engines using the S&S Cycle B2 head. This is why S&S Cycle B2 heads are the hottest ticket for adding even more horsepower to the already powerful S&S Cycle Evo and Twin Cam Harley replacement engines. These racing style heads come with a 2.200 intake valve and a 1.800 exhaust valve.
The S&S Cycle B2 heads are standard issue on the Twin Cam 126 engines, but are available for any engine with a 4.125 or larger bore. You can even put them on stock Harley engines that have been modified to the larger bore. S&S Cycle B2 heads are also available with different head bolt patterns for other Harley replacement engines.
The S&S Cycle B2 heads are CNC ported directly from S&S Cycle. S&S Cycle B2 head Twin Cam Harley replacement engines come with special pistons that have a dome shape which complements the combustion chamber of the S&S Cycle B2 head. This enhances flow for better flame travel and a more efficient combustion process. The addition of these S&S Cycle B2 heads will maximize the performance of any of the Harley replacements engines above.
When upgrading your Harley engine ask about the S&S Cycle B2 head options for your motorcycle. Whether you want the fastest street bike in your town or if you plan on taking your bike to the drag strip, the S&S Cycle B2 head Twin cam Harley replacement engine is the choice. Upgrade your engine to the S&S Cycle B2 heads. You will be glad you did.
Call DC V-Twin today to learn more about making your bike the best it can be with one of the new S&S Cycle Harley replacement engines with B2 heads. No matter if you choose the popular 126 Twin Cam engine or build a custom engine, it will rip the asphalt up with the addition of S&S Cycle’s B2 heads. If you need more horsepower, S&S Cycle and DC V-Twin has you covered. Phone DC V-TWIN at 478-988-4313
Fitment:
- Twin cam 1999-up and 1984-1999 Evo (Twin cam with evo rear mounts)
Features and Benefits:
- S&S gear drive oil pump with polished cover
- High flow B2 heads with 2.2" intake and 1.8" exhaust valves
- Chrome rocker covers
- 106cc Combustion chambers
- Oval intake ports bolt up to S&S Throttle
- Hog 70mm throttle bodies (08-up touring applications only)
- .660" lift S&S valve springs with titanium top collars
- Machined for stock sensors – EFI ready
- 4 bolt and 2 bolt exhaust flanges available
Options:
- Custom induction systems available – order separately
- 126": 4.375" bore x 4.1875" stroke
- 124": 4.125” bore x 4.625”
- 111": 4.125” bore x 4.625”
B2 HEAD UPGRADE
As with any good engine, someone some where is trying to make it faster. That’s what the guys at dc v-twin have done. We can take any 4 1/8th bore engine and make it faster by installing b2 heads and going one step above and beyond by custom porting the b2 head. B2 heads come with 2.200 intake valves and 1.800 exhuast valves. The valve sizes in the b2 heads are considerably larger than those in the super stock heads from s&s and especially the stock heads from harley davidson.
The b2 heads are also know as the big fin heads from the guys at s&s cycle. Not only does dc v-twin perform custom cylinder head porting on the b2 heads, they also reshape the chamber. The chamber gets bored to a different angle to allow for better blame travel and to also help in gaining that last little bit of compression.
Make no bones about it, the b2 heads will pick up about ten horsepower with a quick install or you can go the extra mile and have the heads ported and the chambers reworked for maximum horsepower at dc v-twin. This is the only way to truly get the most from your bike in a naturally aspirated format.
Next time you get your butt handed to you on the street in a red light to red light drag race match, just consider the making the move to the custom ported b2 heads from dc v-twin. Give dc v-twin a call for more information on the b2 or to place a custom order. Its as easy as a phone call away. Do it today at 478-988-4313

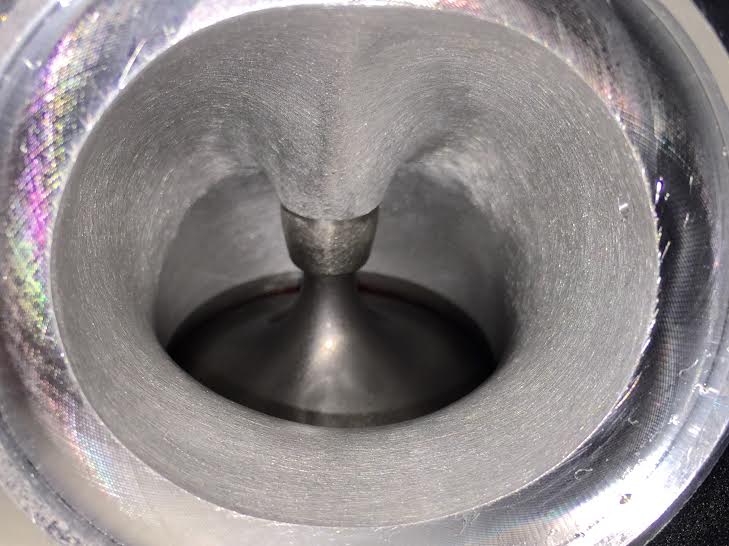

B2 INTAKE CUSTOM PORTWORK

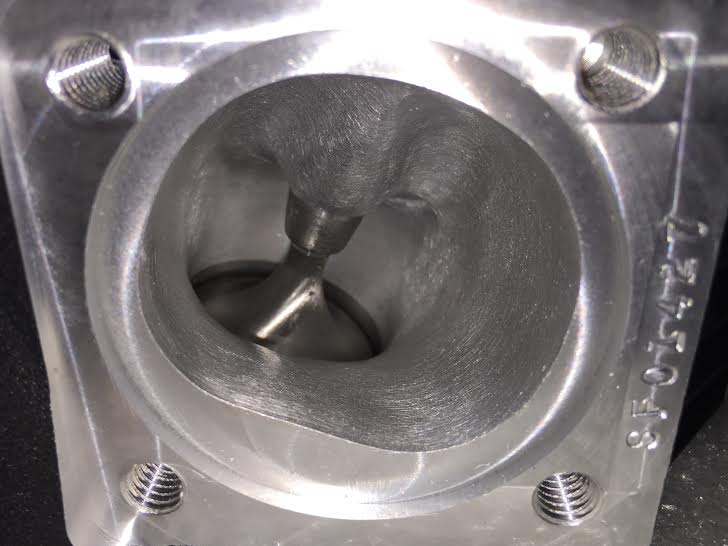

B2 EXHAUST CUSTOM PORTWORK WITH 4 BOLT FLANGE

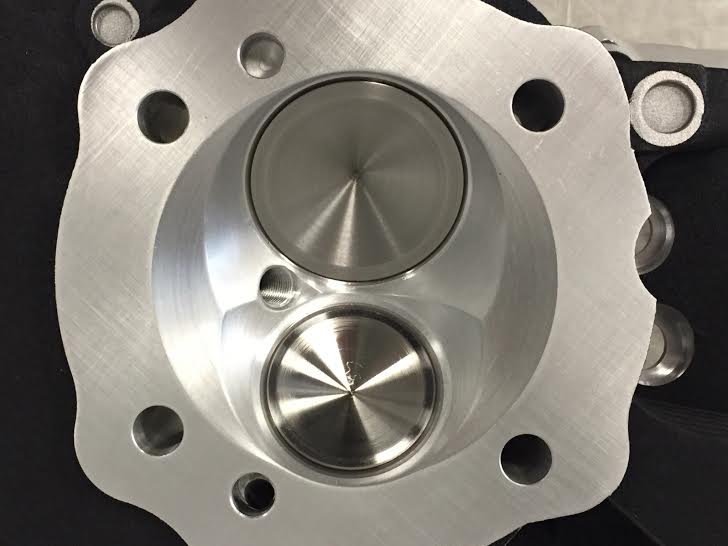

B2 CUSTOM BLENDED CHAMBER WITH 2.200 INTAKE VALVE AND 1.800 EXHAUST VALVE
- Details
- Written by: support911
- Category: S&S Harley Replacement Engines
- Hits: 22036
EVO Harley Replacement Engine 96"
Want to replace your worn out Harley-Davidson Evolution engine without breaking the bank? Look no further than DC V-Twins wide selection of S&S Cycle Harley Replacement engines. At DC V-Twin they have several Evolution Harley replacement engines. These replacement engines fit 1984-1999 big twin chassis which came with Evolution style engine mounts.
The V96 cubic inch engine is the first of four engines for your Harley. It’s been a staple in the long line of S&S Cycle Harley replacement engines. Most of your custom bike builders installed the V96 cubic inch engine in their frames as an engine that is great for daily driving or touring. The V96 inch Evolution Harley replacement engine delivers exceptionally smooth power and incredible reliability for a 3 5/8 bore engine that can’t be beat.
The next engine in the S&S Cycle line up is the V111 Evolution Harley replacement engine. This is a favorite at DC V-Twin with its short 4 1/8 inch stroke and 4 1/8 inch bore making it a true square Harley replacement engine. With equal bore and stroke, the V111 engine is the smoothest riding engine on the market. This combination also gives you the best throttle response as it likes to rev up really fast. Horsepower numbers are comparable to its big brother the V124. Pick the V111 as your Harley replacement engine and you will be glad you did.
S&S Cycle also offers a V113 available from DC V-Twin. The V113 is a 10 to 1 compression engine that is available in several color combinations like the V96”, V111”, and V124. The V113 delivers excellent torque as a Harley replacement engine and makes heads turn when pulling off from a red light. Give the S&S Cycle V113 look next time you are looking for a Harley replacement engine.
Finally the biggest and most powerful Evolution engine from S&S Cycle is the V124. The V124 Harley replacement engine has a 4 1/8 inch bore and a 4 5/8 inch stroke. These engines for your Harley make over 130 horsepower and 130 foot pounds of torque, which is more than enough to make riding two up a breeze. When you twist the throttle on the V124 you will feel the horsepower difference, and this makes life a lot easier when trying to pass in traffic. So do yourself a favor and call DC V-Twin for the best in Harley replacement engines for your motorcycle at 478-988-4313
96 CUBIC INCH EVO HARLEY REPLACEMENT ENGINE 1984-1989
FITMENT
- 1984–’99 carbureted chassis
- Custom chassis designed for Evolution® engines
FEATURES AND BENEFITS
- Nearly stock height engine makes installation easy (+.015")
- S&S Super E carburetor with teardrop air cleaner cover
- S&S 585 cam and lightweight single coil valve springs reduce engine noise
- S&S forged rocker arms
- Chrome plated rocker covers, tappet guides, and gearcover
- Natural, Wrinkle Black (WBlack) powder coat, or polished finish
OPTIONS
1: Intelligent Spark Technology (IST®) ignition system
- Knock sensing ignition control prolongs engine life by automatically adjusting timing to eliminate knock by learning and storing ignition requirements of the engine
- Guardian feature ensures proper engine break-in and protects engine with a low rev-limiter for first 24-hours of operation
- Logs engine data, diagnostic test codes, and history items which can be viewed via a PC when equipped with diagnostic cable and software part #55-5075
- Extended three-year warranty
2: Super Stock® ignition
- Protects engine with a 3-step break-in rev-limiter during first 24 hours of operation
- Logs engine data that can be viewed via a PC when equipped with diagnostic cable and software part #55-1271
- Initially configured for electric start, however it may be switched to kick-start mode using diagnostic cable and software
- Two-year warranty
V96 Engine Specifications |
|||||
Displacement |
Bore |
Stroke |
Cam |
Piston Type |
Compression Ratio |
| 96" | 3 5/8" | 4 5/8" | 585 | S&S Flat Top Forged | 9.5:1 |
V96 Engines |
||||||
Chassis Style |
Fuel Delivery |
Ignition |
Warranty |
Natural Finish |
WBlack Finish |
Polished Finish |
| 1984-'99 | S&S Super E Carb | IST® | 3 Years | 106-4602 | 106-4603 | 106-4604 |
| Super Stock® | 2 Years | 31-9955 | 31-9956 | 31-9957 | ||
EVO Harley Replacement Engine 111"
Want to replace your worn out Harley-Davidson Evolution engine without breaking the bank? Look no further than DC V-Twins wide selection of S&S Cycle Harley Replacement engines. At DC V-Twin they have several Evolution Harley replacement engines. These replacement engines fit 1984-1999 big twin chassis which came with Evolution style engine mounts.
The V96 cubic inch engine is the first of four engines for your Harley. It’s been a staple in the long line of S&S Cycle Harley replacement engines. Most of your custom bike builders installed the V96 cubic inch engine in their frames as an engine that is great for daily driving or touring. The V96 inch Evolution Harley replacement engine delivers exceptionally smooth power and incredible reliability for a 3 5/8 bore engine that can’t be beat.
The next engine in the S&S Cycle line up is the V111 Evolution Harley replacement engine. This is a favorite at DC V-Twin with its short 4 1/8 inch stroke and 4 1/8 inch bore making it a true square Harley replacement engine. With equal bore and stroke, the V111 engine is the smoothest riding engine on the market. This combination also gives you the best throttle response as it likes to rev up really fast. Horsepower numbers are comparable to its big brother the V124. Pick the V111 as your Harley replacement engine and you will be glad you did.
S&S Cycle also offers a V113 available from DC V-Twin. The V113 is a 10 to 1 compression engine that is available in several color combinations like the V96”, V111”, and V124. The V113 delivers excellent torque as a Harley replacement engine and makes heads turn when pulling off from a red light. Give the S&S Cycle V113 look next time you are looking for a Harley replacement engine.
Finally the biggest and most powerful Evolution engine from S&S Cycle is the V124. The V124 Harley replacement engine has a 4 1/8 inch bore and a 4 5/8 inch stroke. These engines for your Harley make over 130 horsepower and 130 foot pounds of torque, which is more than enough to make riding two up a breeze. When you twist the throttle on the V124 you will feel the horsepower difference, and this makes life a lot easier when trying to pass in traffic. So do yourself a favor and call DC V-Twin for the best in Harley replacement engines for your motorcycle at 478-988-4313
111 cubic inches EVO HARLEY REPLACEMENT ENGINE 1984-1989
FITMENT
- 1984–’99 carbureted chassis
- Custom chassis designed for Evolution® engines
FEATURES AND BENEFITS
- Short stroke produces less vibration and longer engine life
- Piston cooling jets
- Large cooling fins - increases cooling efficiency
- HVHP (High Volume High Pressure) oil pump
- S&S 585 cam and lightweight single coil valve springs minimize valve train noise
- S&S forged rocker arms
- Shorter than stock height engine makes installation easy
- Chrome plated rocker covers, tappet guides, and gearcover
OPTIONS
- Natural, Wrinkle Black (WBlack) powder coat or polished finish
- IST® ignition or Super Stock® Ignition
- Carbureted Engines (1984–’99)
- S&S Super E carburetor with teardrop air cleaner
1: Intelligent Spark Technology (IST®) ignition system
- Knock sensing ignition control prolongs engine life by automatically adjusting timing to eliminate knock by learning and storing ignition requirements of the engine
- Guardian feature ensures proper engine break-in and protects engine with a 3 step break-in rev-limiter for first 24-hours of operation
- Logs engine data, diagnostic test codes and history items, which can be viewed via a PC when equipped with diagnostic cable and software part #55-5075
- Extended three-year warranty
2: Super Stock® ignition system
- Protects engine with a 3-step break-in rev-limiter during first 24-hours of operation
- Logs engine data that can be viewed via a PC when equipped with diagnostic cable and software part #55-1271
- Initially configured for electric start, however, it is kick-start capable
- Two-year warranty
V111 Engine Specifications |
|||||
Displacement |
Bore |
Stroke |
Cam |
Piston Type |
Compression Ratio |
| 111" | 4 1/8" | 4 1/8" | 585 | S&S Forged | 9.8:1 |
V111 Engines |
||||||
Chassis Style |
Fuel Delivery |
Ignition |
Warranty |
Natural Finish |
WBlack Finish |
Polished Finish |
| 1984-'99 Carb | S&S Super E Carb | IST® | 3 Years | 106-5701 | 106-5702 | - - |
| Super Stock® | 2 Years | 106-5703 | 106-5704 | 310-0385 | ||
EVO Harley Replacement Engine 113"
Want to replace your worn out Harley-Davidson Evolution engine without breaking the bank? Look no further than DC V-Twins wide selection of S&S Cycle Harley Replacement engines. At DC V-Twin they have several Evolution Harley replacement engines. These replacement engines fit 1984-1999 big twin chassis which came with Evolution style engine mounts.
The V96 cubic inch engine is the first of four engines for your Harley. It’s been a staple in the long line of S&S Cycle Harley replacement engines. Most of your custom bike builders installed the V96 cubic inch engine in their frames as an engine that is great for daily driving or touring. The V96 inch Evolution Harley replacement engine delivers exceptionally smooth power and incredible reliability for a 3 5/8 bore engine that can’t be beat.
The next engine in the S&S Cycle line up is the V111 Evolution Harley replacement engine. This is a favorite at DC V-Twin with its short 4 1/8 inch stroke and 4 1/8 inch bore making it a true square Harley replacement engine. With equal bore and stroke, the V111 engine is the smoothest riding engine on the market. This combination also gives you the best throttle response as it likes to rev up really fast. Horsepower numbers are comparable to its big brother the V124. Pick the V111 as your Harley replacement engine and you will be glad you did.
S&S Cycle also offers a V113 available from DC V-Twin. The V113 is a 10 to 1 compression engine that is available in several color combinations like the V96”, V111”, and V124. The V113 delivers excellent torque as a Harley replacement engine and makes heads turn when pulling off from a red light. Give the S&S Cycle V113 look next time you are looking for a Harley replacement engine.
Finally the biggest and most powerful Evolution engine from S&S Cycle is the V124. The V124 Harley replacement engine has a 4 1/8 inch bore and a 4 5/8 inch stroke. These engines for your Harley make over 130 horsepower and 130 foot pounds of torque, which is more than enough to make riding two up a breeze. When you twist the throttle on the V124 you will feel the horsepower difference, and this makes life a lot easier when trying to pass in traffic. So do yourself a favor and call DC V-Twin for the best in Harley replacement engines for your motorcycle at 478-988-4313
113 cubic inches EVO HARLEY REPLACEMENT ENGINE 1984-1989
FITMENT
- 1984–’99 carbureted chassis
- Custom chassis designed for Harley-Davidson® Evolution® engines
FEATURES AND BENEFITS
- Shorter than stock height engine makes installation easy
- S&S Super G carburetor with teardrop air cleaner cover
- Chrome plated rocker covers, tappet guides, and gearcover
- Electronic compression release
- Natural, Wrinkle Black (WBlack) powder coat, or polished finish
OPTIONS
1: Intelligent Spark Technology (IST®) ignition system
- Knock sensing ignition control prolongs engine life by automatically adjusting timing to eliminate knock by learning and storing ignition requirements of the engine
- Guardian feature ensures proper engine break-in and protects engine with a low rev-limiter for first 24-hours of operation
- Logs engine data, diagnostic test codes, and history items which can be viewed via a PC when equipped with diagnostic cable and software part #55-5075
- Extended three-year warranty
2: Super Stock® ignition system
- Protects engine with a 3 step break-in rev-limiter during first 24-hours of operation
- Logs engine data that can be viewed via a PC when equipped with diagnostic cable and software part #55-1271
- Initially configured for electric start, however, it is kick-start capable
- Two-year warranty
V113 Engine Specifications |
|||||
Displacement |
Bore |
Stroke |
Cam |
Piston Type |
Compression Ratio |
| 113" | 4" | 4 1/2" | 600 | S&S Forged | 10.0:1 |
V113 Engines |
||||||
Chassis Style |
Fuel Delivery |
Ignition |
Warranty |
Natural Finish |
WBlack Finish |
Polished Finish |
| 1984-'99 Carb | S&S Super E Carb | IST® | 3 Years | 31-9488 | 31-9489 | 31-9490 |
| Super Stock® | 2 Years | 31-9491 | 31-9492 | 31-9493 | ||
EVO Harley Replacement Engine 124"
Want to replace your worn out Harley-Davidson Evolution engine without breaking the bank? Look no further than DC V-Twins wide selection of S&S Cycle Harley Replacement engines. At DC V-Twin they have several Evolution Harley replacement engines. These replacement engines fit 1984-1999 big twin chassis which came with Evolution style engine mounts.
The V96 cubic inch engine is the first of four engines for your Harley. It’s been a staple in the long line of S&S Cycle Harley replacement engines. Most of your custom bike builders installed the V96 cubic inch engine in their frames as an engine that is great for daily driving or touring. The V96 inch Evolution Harley replacement engine delivers exceptionally smooth power and incredible reliability for a 3 5/8 bore engine that can’t be beat.
The next engine in the S&S Cycle line up is the V111 Evolution Harley replacement engine. This is a favorite at DC V-Twin with its short 4 1/8 inch stroke and 4 1/8 inch bore making it a true square Harley replacement engine. With equal bore and stroke, the V111 engine is the smoothest riding engine on the market. This combination also gives you the best throttle response as it likes to rev up really fast. Horsepower numbers are comparable to its big brother the V124. Pick the V111 as your Harley replacement engine and you will be glad you did.
S&S Cycle also offers a V113 available from DC V-Twin. The V113 is a 10 to 1 compression engine that is available in several color combinations like the V96”, V111”, and V124. The V113 delivers excellent torque as a Harley replacement engine and makes heads turn when pulling off from a red light. Give the S&S Cycle V113 look next time you are looking for a Harley replacement engine.
Finally the biggest and most powerful Evolution engine from S&S Cycle is the V124. The V124 Harley replacement engine has a 4 1/8 inch bore and a 4 5/8 inch stroke. These engines for your Harley make over 130 horsepower and 130 foot pounds of torque, which is more than enough to make riding two up a breeze. When you twist the throttle on the V124 you will feel the horsepower difference, and this makes life a lot easier when trying to pass in traffic. So do yourself a favor and call DC V-Twin for the best in Harley replacement engines for your motorcycle at 478-988-4313
124 cubic inches EVO HARLEY REPLACEMENT ENGINE 1984-1989
FITMENT
- 1995–’98 fuel injected chassis
- 1984–’99 carbureted chassis
- Custom chassis designed for Evolution engine
- Not for chassis with oil tank higher than crankcase
FEATURES AND BENEFITS
- 124" displacement for great performance
- S&S Easy Start gear drive cams and billet oil pump
- Silver powder coat, Wrinkle Black (WBlack) powder coat, and polished finish.
- Diamond cut finishes are available, but have longer lead times.
Fuel Injected Engines (1995-’98)
- Single bore EFI throttle body with S&S teardrop air cleaner
- Magneti Marelli® style S&S Variable Fuel Injection (VFI) module with built-in three stage engine overheat protection
- Closed loop fuel system, dual oxygen sensors provide air-fuel ratio feedback for correct fuel delivery under any condition
- Included S&S ProTune II software provides base fuel maps for most aftermarket exhaust systems
- One-year warranty
Carbureted Engines (1984–’99)
- S&S Super G carburetor with slotted "Slasher" air cleaner cover
- Guardian feature ensures proper engine break-in and protects engine with a low rev-limiter for first 24-hours of operation
- Knock sensing ignition control prolongs engine life by automatically adjusting timing to eliminate knock by learning and storing ignition requirements of the engine
- Logs engine data, diagnostic test codes and history items, which can be viewed via a PC when equipped with diagnostic cable and software part #55-5075
- Extended two-year warranty
V124 Engine Specifications |
|||||
Displacement |
Bore |
Stroke |
Cam |
Piston Type |
Compression Ratio |
| 124" | 4 1/8" | 4 5/8" | 640 | S&S Forged | 10.8:1 |
V124 Engines |
|||||||||
Chassis Style |
Fuel Delivery |
Ignition |
Warranty |
Natural Finish |
WBlack Finish |
Diamond Cut Black |
Polished |
Fully Polished |
Diamond Cut Fully Polished |
| 1984-'99 Carb | S&S Super G Carb | IST® | 2 Years | 31-9528 | 31-9552 | 106-0801 | 31-9553 | 106-0796 | 106-0791 |
| Super Stock® | 1 Year | 31-9860 | 31-9885 | - - | 31-9886 | - - | - - | ||
| 1995-'98 FI | Magneti Marelli® Style VFI | VFI | 1 Year | 106-0565 | 106-0566 | 106-0802 | 106-0567 | 106-0797 | 106-0790 |
 |
 |
 |
Wrinkle Black Powder Coat Finish |
Natural Finish |
Polished Finish |
(478) 988-4313
